Price: $29.99
(as of Jul 13, 2026 20:02:47 UTC – Details)

Product description

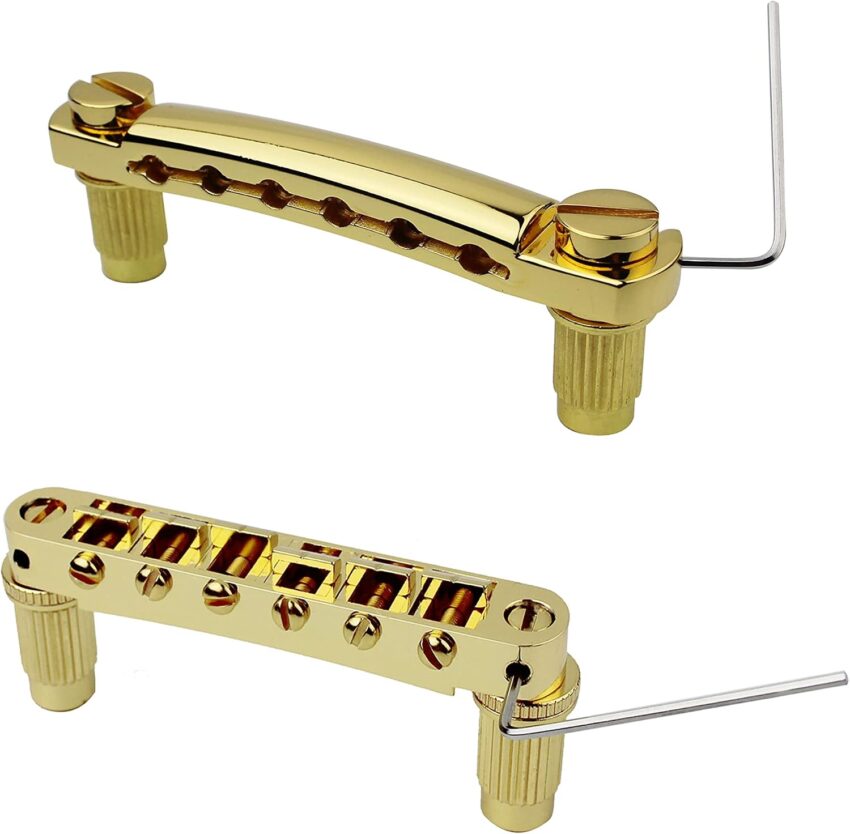

The GM003+GS001 set is an ideal replacement bridge and stop bar compatible with LP style, EPI or any 6 strings guitar that has a Tune-O-Matic setup.

Features:

Replacement/upgrade bridge with posts for Tune-o-Matic 6 stringed instruments.Easy to install and convenient to use.Made of high-grade zinc alloy material, durable and sturdy.Low-friction zinc alloy saddles let the strings move freely and return to the accurate pitch.The bridge is supplied with thumbwheel height-adjustment studs and knurled bushings.6 Colors available: Bronze, chrome, black, Rainbow Chameleon, gold, relic.

Specifications:

Saddle bridge: 88.9 mm x 13.7 mm(3.5 inch x 0.54 inch),Bridge Post Spacing: Approx. 73.9 mm (2.91 inches),Bridge String Spacing: Approx. 10.5mm (0.41 inch).Tailpiece Studs Spacing: Approx. 81.9 mm (3.23 inch)Whole tailpiece length: Approx. 101 mm (3.98 inch)Tailpiece String spacing: Approx. 10.5 mm (0.41 inch)

Note:

Please check the parameter drawing in the attached pics before placing your order.

GM003 Installation:

Determine the scale length of your neck. To do this, measure the length from the nut to the 12th fret then double it, and mark the spot.Align the saddles of your bridge right on top of the marked spot and make sure the entire bridge is centered relative to the neck.Mark the screw holes, drill, and screw down the bridge.

GS001 Installation:

Determine the position or placement of your GM003 guitar bridge.From there, measure about 38mm – 44.5mm back and mark that spot for your stop bar.Make sure the stop bar is also centered on the neck, just like the bridge.Screw the stopbar and fix it into your guitar.

Package included:

Bridge x 1,Tailpiece x 12 Locking Studs
